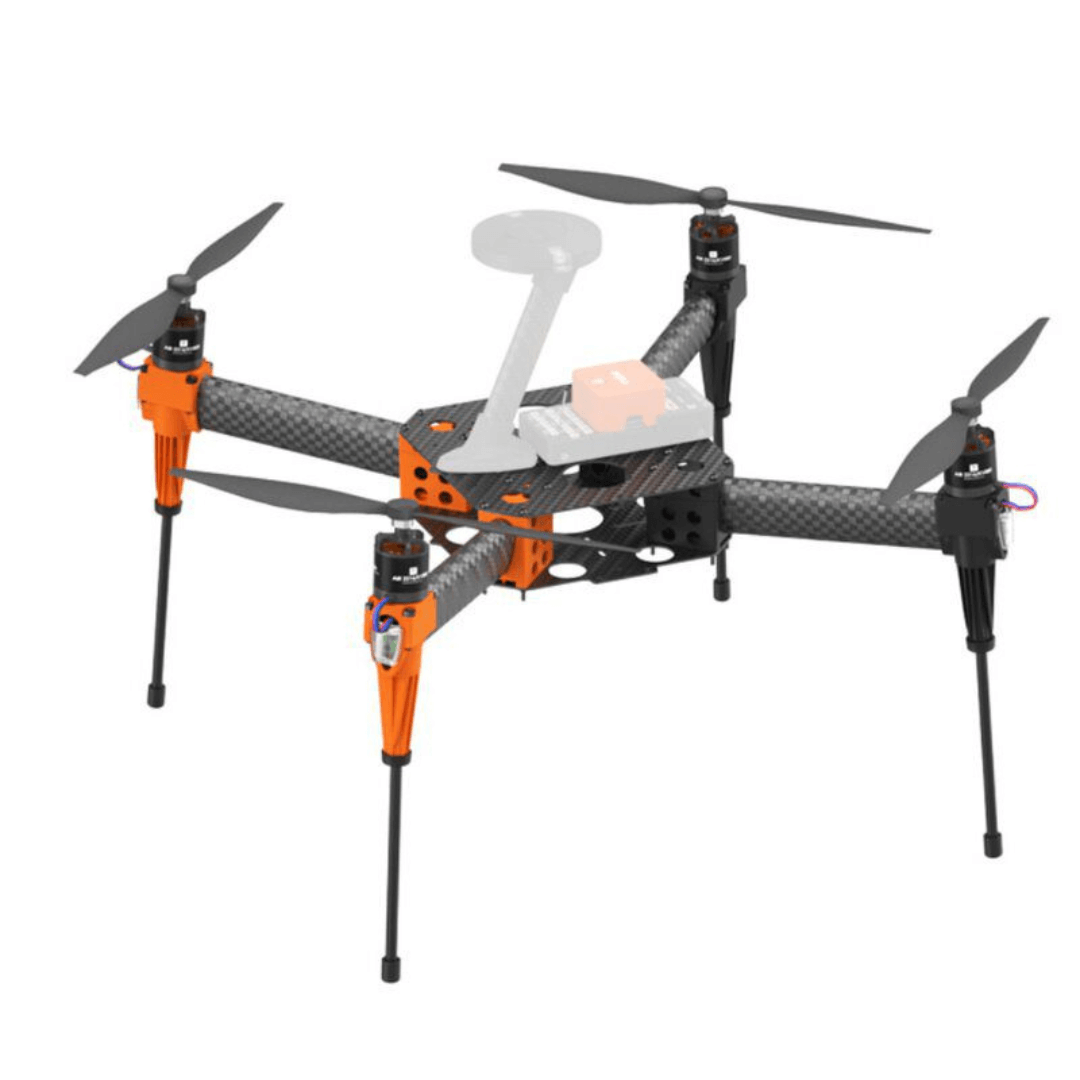

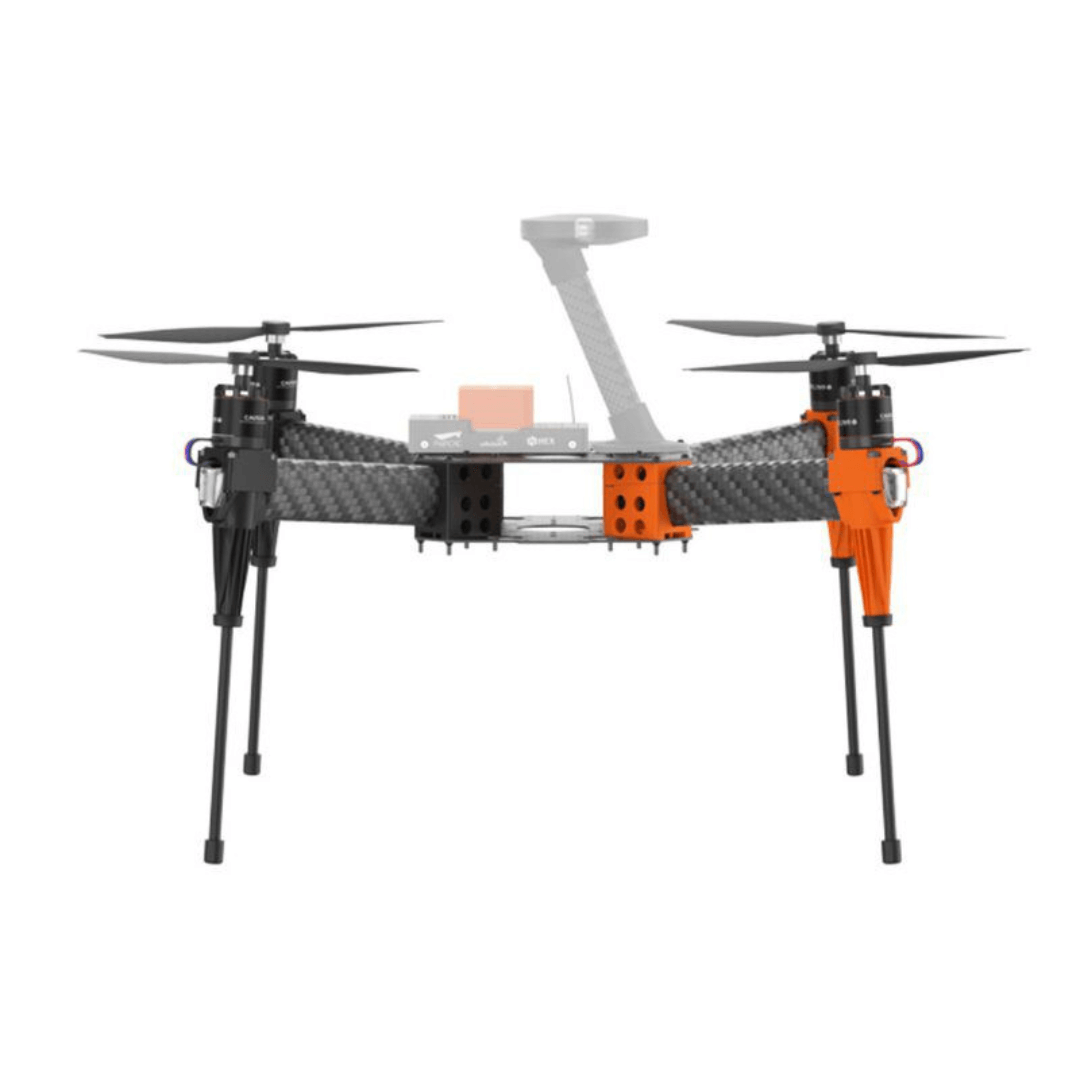

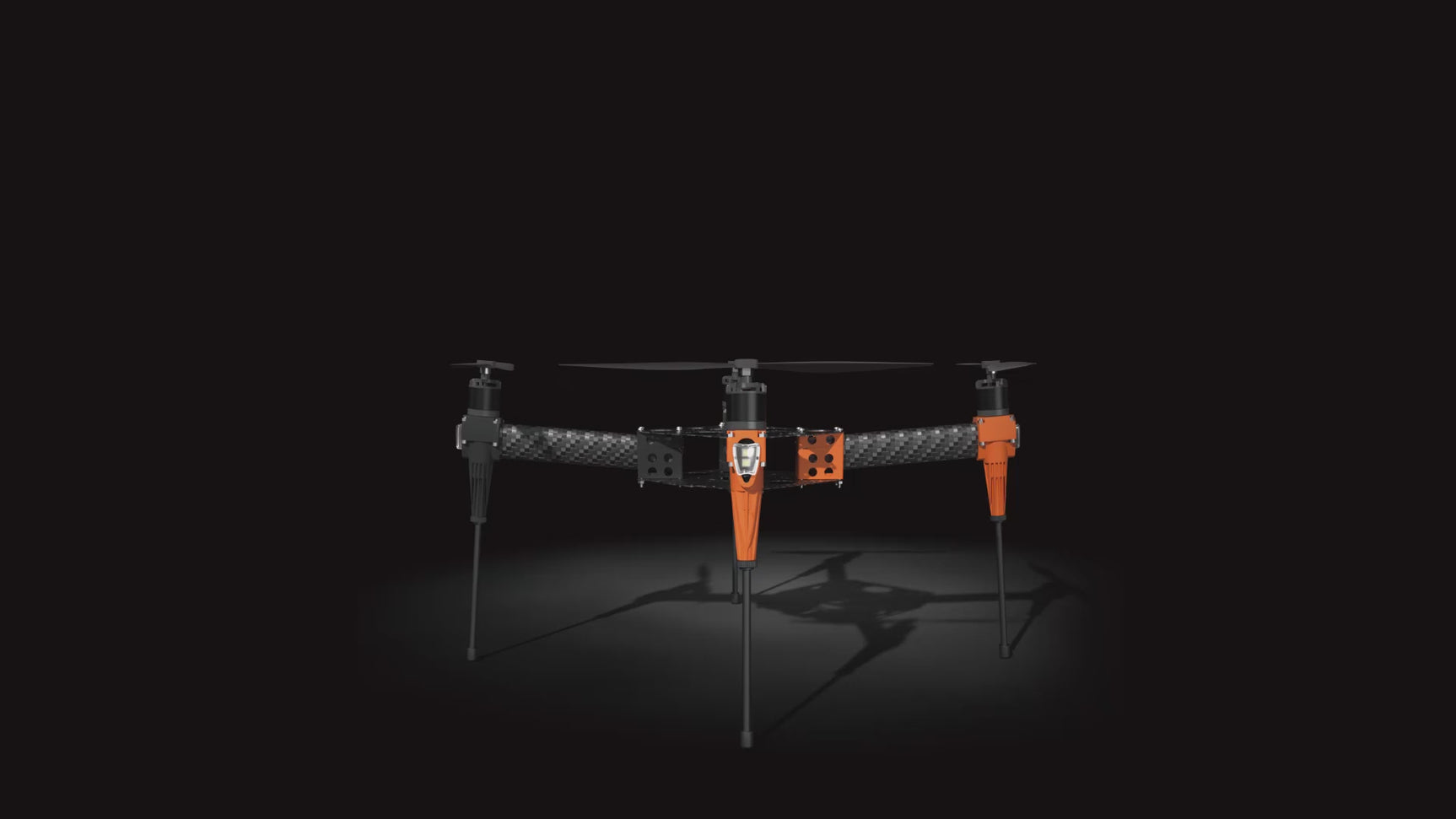

EDU-450 V2 Drone Frame with Power System

Developed by the team at Hex in collaboration with the arducopter development team, the Edu 450 platform has enough space, and lifting capacity to make it the ideal platform for your next research project without the hassles of intricate parts selection.   The aerodynamic arms also greatly improve flight times.

• New aerodynamic tear drop arms design for better efficiency
• Detachable landing gear (short height, or tall height)
• Carbon Fibre material makes drone stiffer
• New motor mounts lower CG
• Integrated arm LED

• Length: 450mm
• Size: 360x360x260mm
• Motor: Tmotor 2216II 920KV
• ESC: Hobbywing X-Rotor 20A
• Propeller: T-motor 1045 II
• Empty Weight: 870g (no battery)
• Max Payload: 960g
• Suggested Battery: 4S 5000mAH  UAV Ultra Light

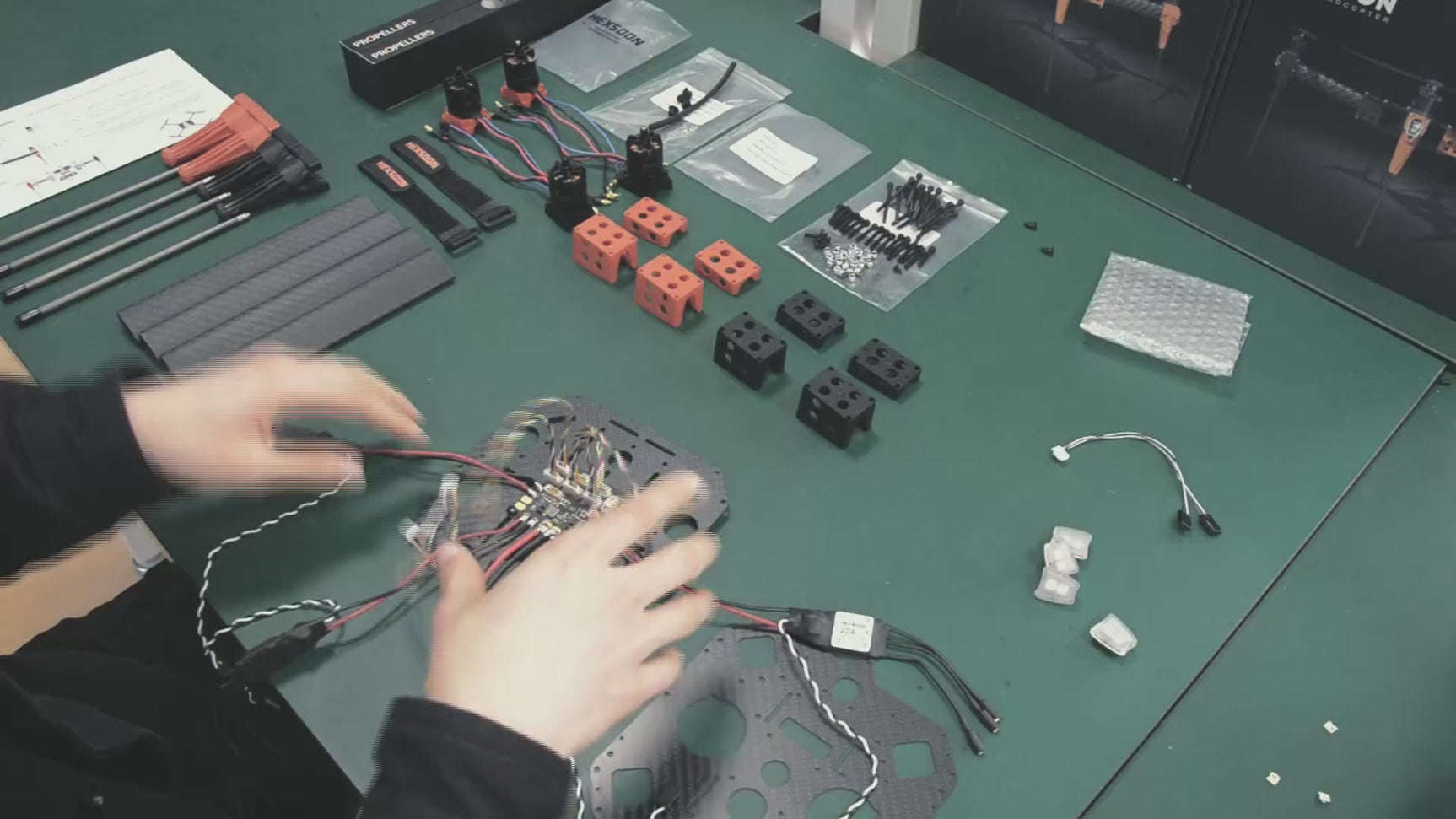

• 1x Hexsoon TD450 V2 Drone (including motors, propellers, PDB and ESC)

You still need a few electronics like the autopilot and battery to fly this drone, we suggest the following:

• Pixhawk 2.1 (Cube) with Here 3 GPS GNSS
• 3S 5200mAh Lipo, or 4S 5000mAH  UAV Ultra Light  or 4S 5200mAh
• 6+ channel radio receiver and transmitter
