Connexa - M.2 Key A/E USB2.0 Hub

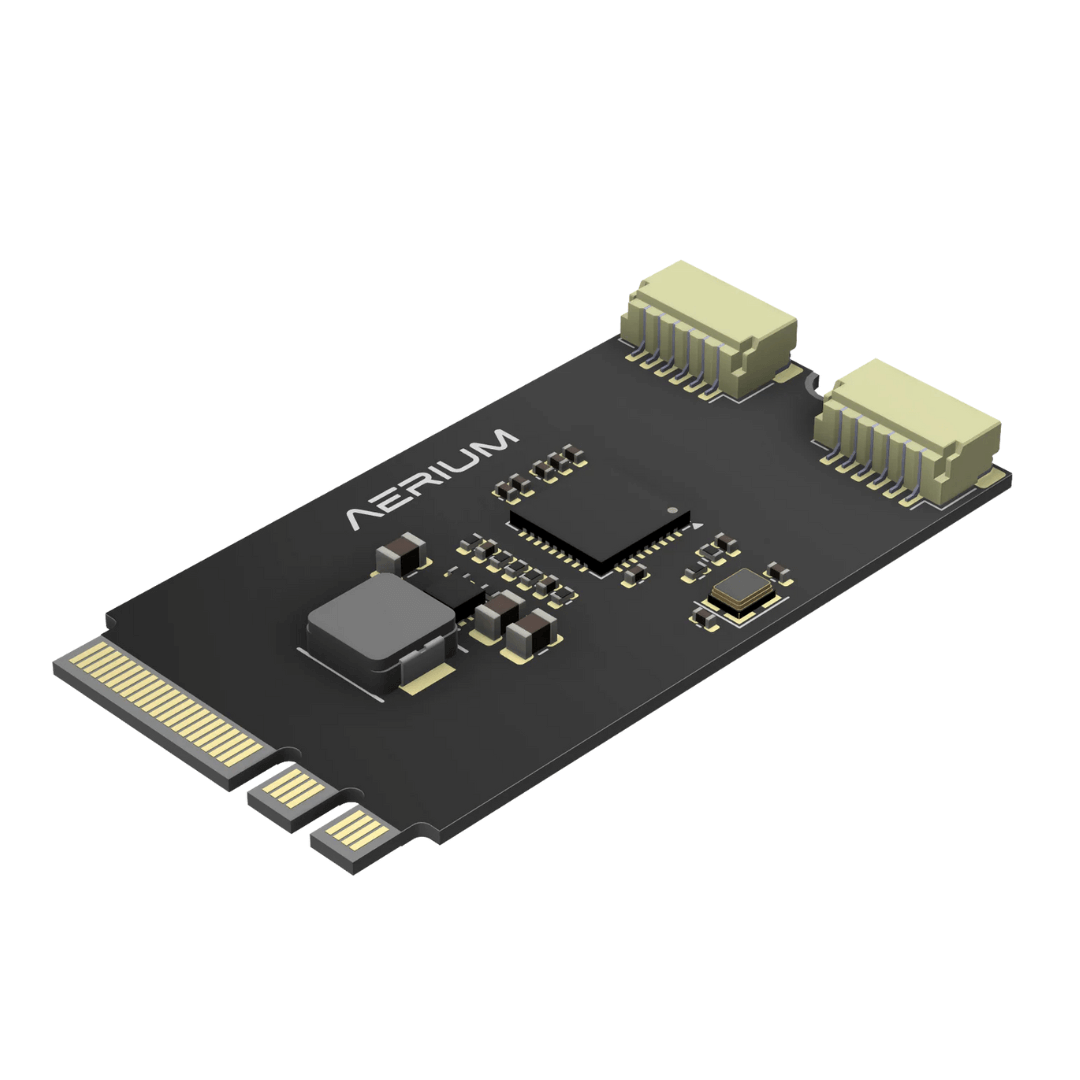

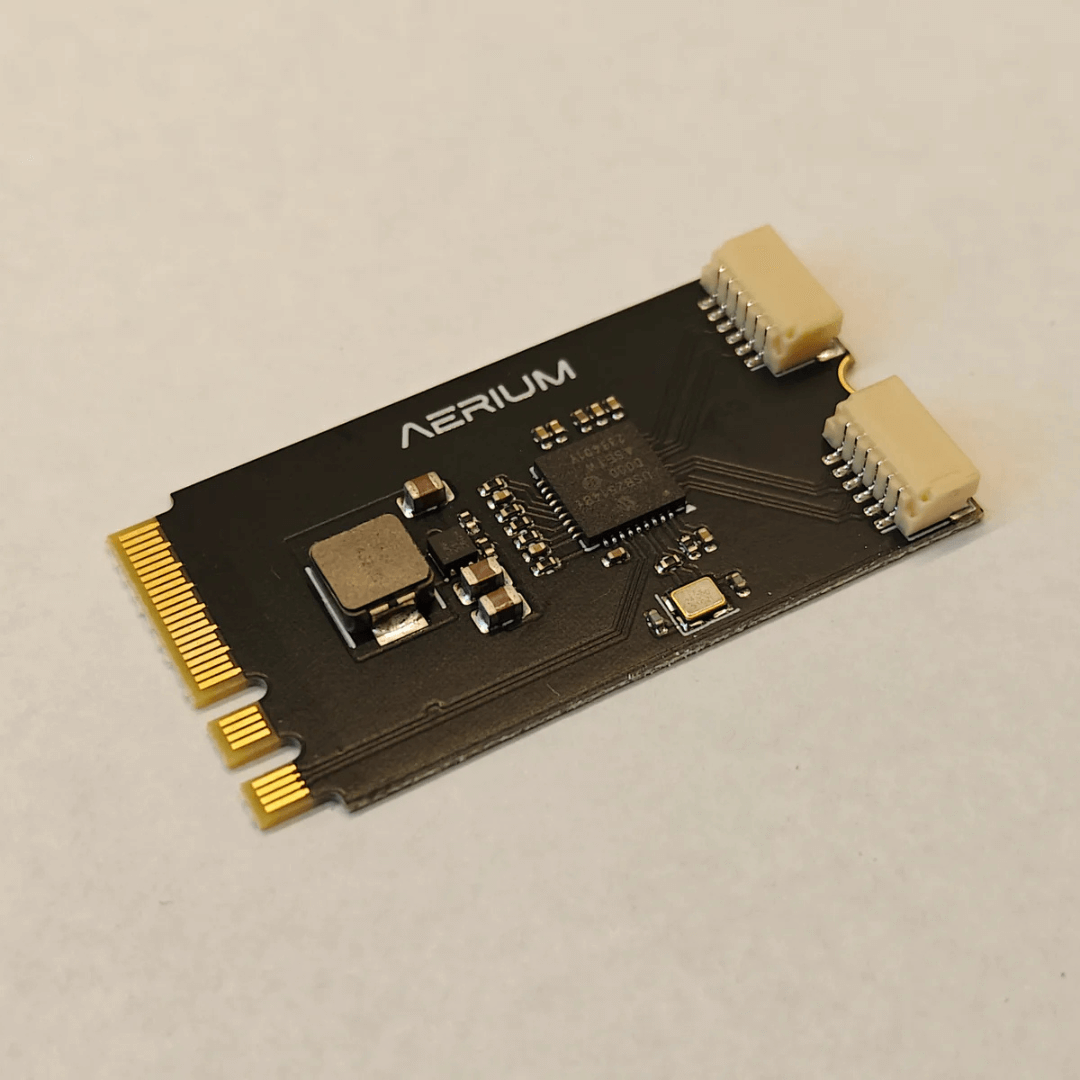

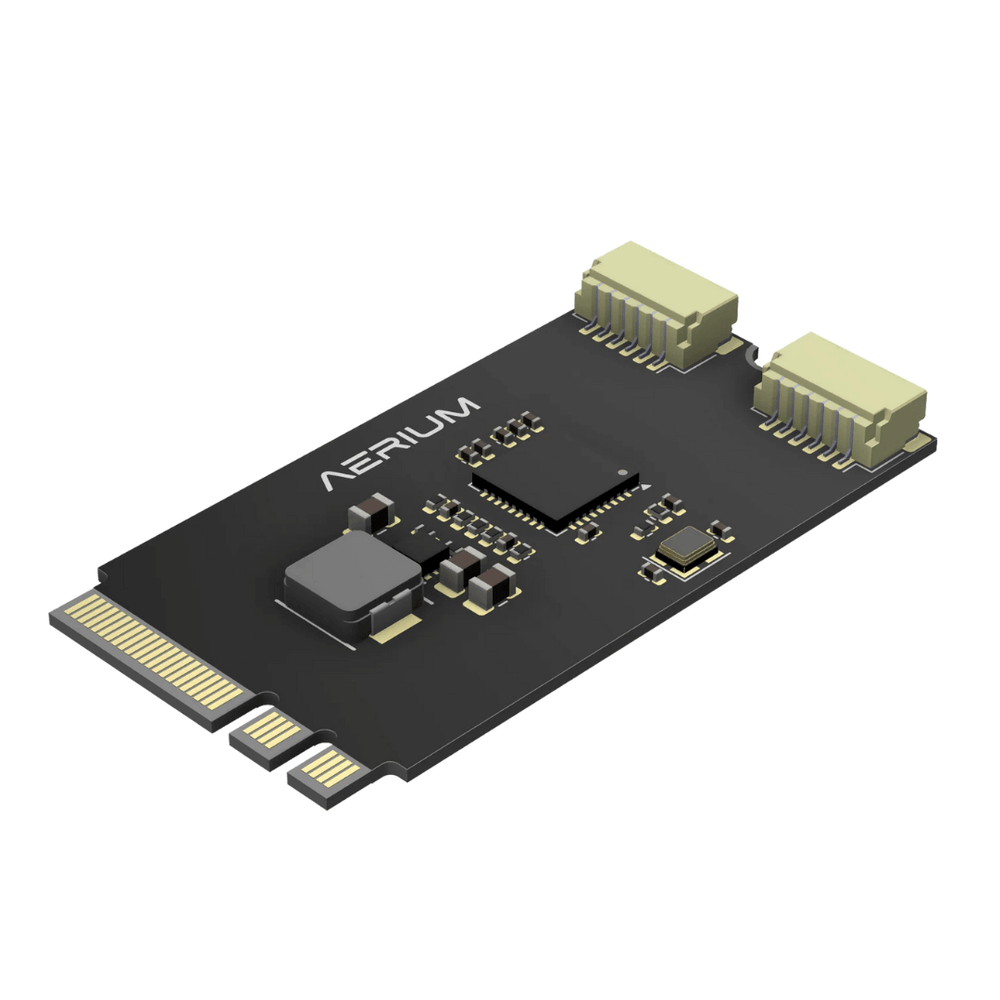

Introducing Aerium Connexa – a versatile USB 2.0 hub module designed to expand connectivity in compact embedded systems.
Built around the Microchip USB2514B controller, Aerium Connexa provides four downstream USB 2.0 ports through a high-speed, low-latency hub architecture. Its M.2 Key A/E interface allows for easy integration into space-constrained applications, making it ideal for adding USB peripheral support to SBCs, wireless modules, and other modular platforms. Whether you're designing UAVs, edge computing devices, or industrial controllers, Aerium Connexa offers a reliable, plug-and-play solution for extending USB connectivity with minimal footprint.
Key Features

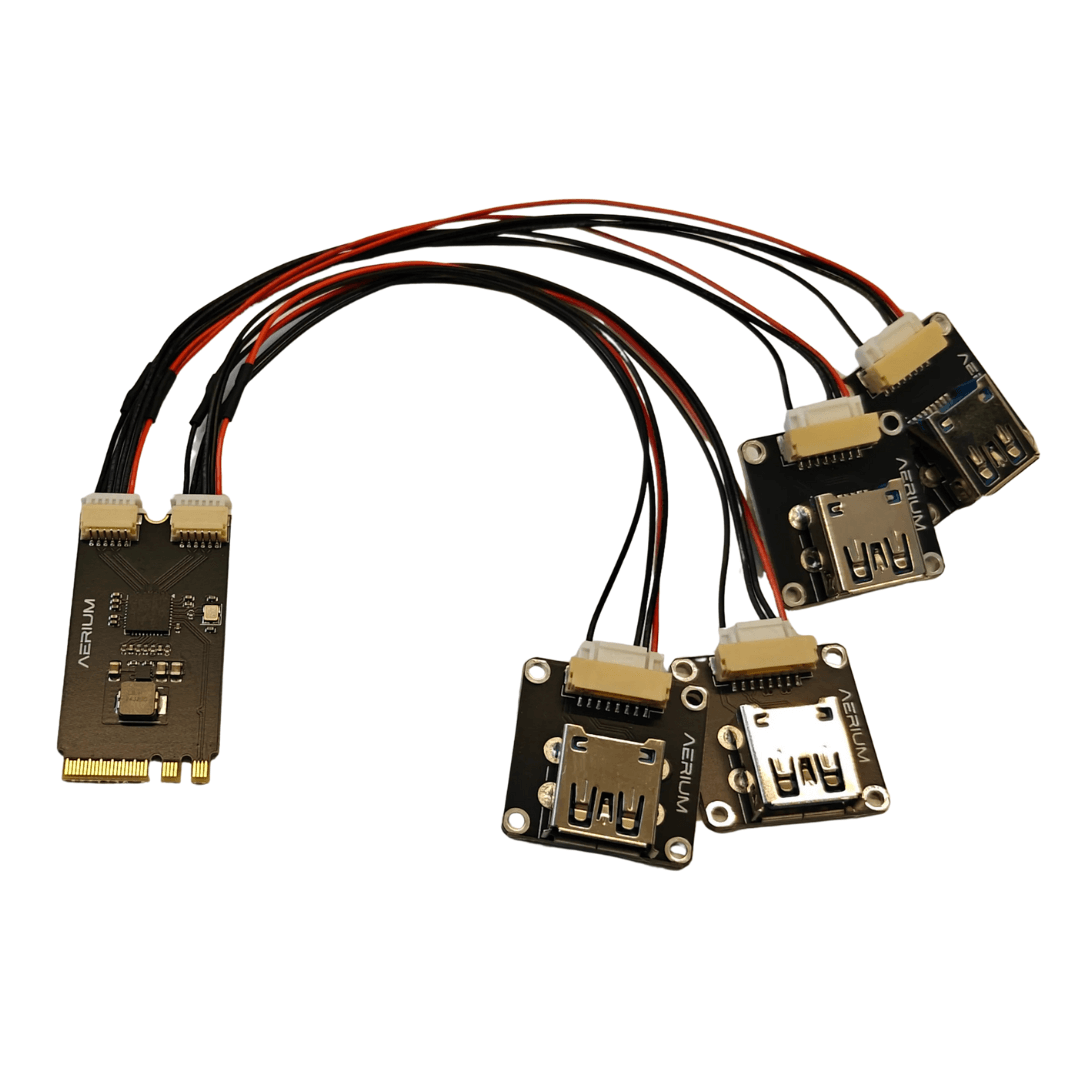

- 4× USB 2.0 downstream ports via Microchip USB2514B controller, robust plug‑and‑play solution
- M.2 Key A/E (M.2 2242) interface perfectly suited for modular placement in various systems.
- Compact and Lightweight: Designed for minimal impact on your UAV’s weight and form factor, making it suitable for various UAV configurations.
- High-Speed USB 2.0 Data Transfer: Supports full USB 2.0 speeds of up to 480 Mbps, enabling fast and stable communication with connected peripherals. Whether you're streaming sensor data, interfacing with cameras, or syncing with GPS modules, you get reliable throughput ideal for real-time embedded applications.
Specifications
- Form Factor: M2 Key A/E
- Dimensions: 22 X 42 mm
- Weight: 5 g
- Input Voltage: 3.3V
