Pixhawk PX4 2.4.8

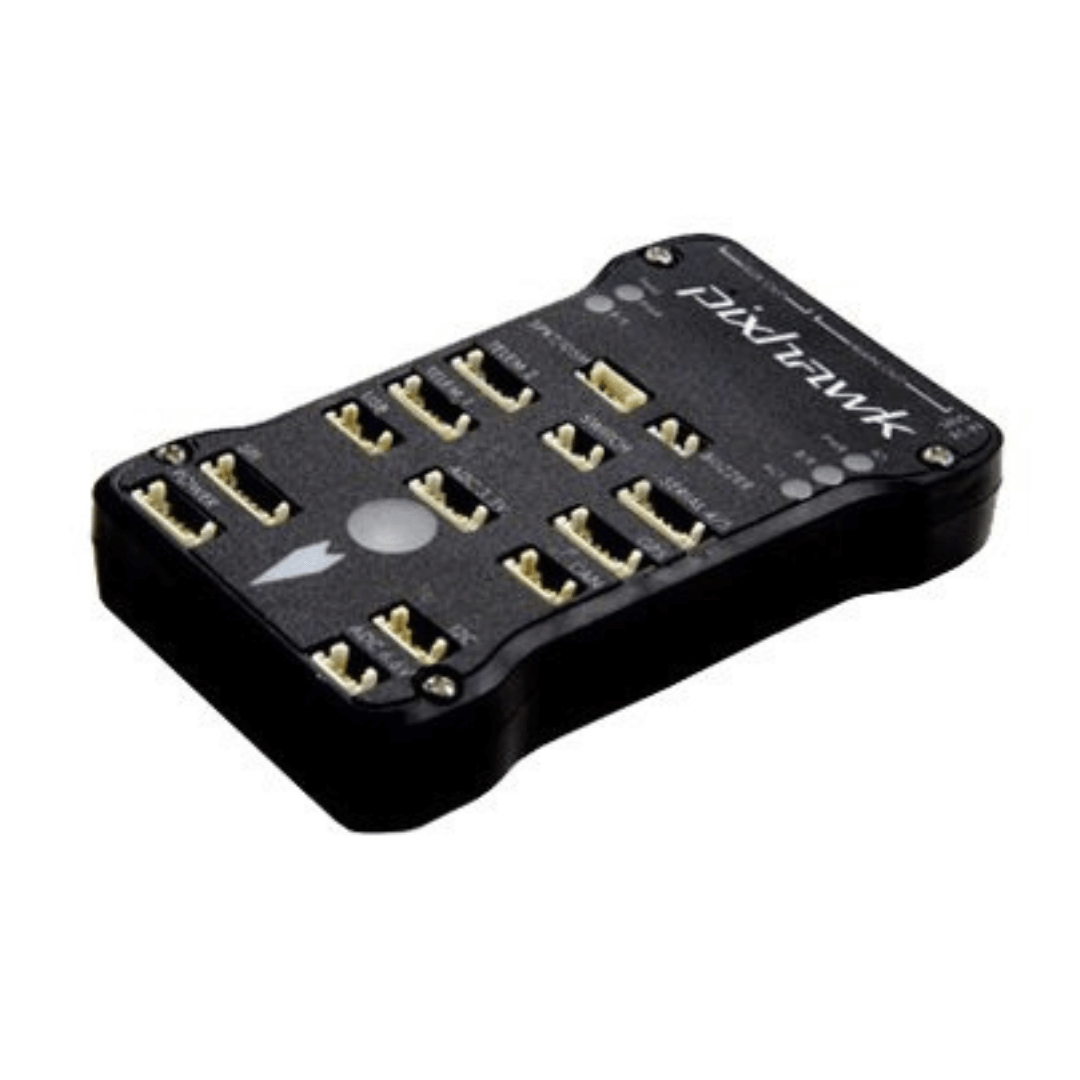

Pixhawk PX4 2.4.8 Flight Controller 32 Bit ARM PX4FMU PX4IO Combo for Multicopters

Specification:
The board integrates with PX4FMU+PX4IO
Pixhawk is with new 32 bit chip and sensor technology

Processor:

• 32 bit 2M flash memory STM32F427  Cortex M4, with hardware floating point processing unit
• Main frequency: 256K, 168MHZ RAM
• 32 bit STM32F103 backup co processor

Sensor:

• L3GD20 3 axis digital 16 bit gyroscope
• LSM303D 3 axis  14 bit accelerometer /magnetometer
• MPU6000 6 axis accelerometer / magnetometer
• MS5611 high precision barometer

Interface:

• 5* UART, 1*compatible high voltage, 2*hardware flow control
• 2*CAN
• Spektrum DSM/DSM2/DSM-X satellite receiver compatible input
• Futaba SBUS compatible input and output
• PPM signal input
• RSSI (PWM or voltage) input
• I2C
• SPI
• 3.3 and 6.6VADC input
• External USB MICRO interface

Features:

• Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
• Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
• Provide redundant power input and fault transfer function;
• 14* PWM/ actuator output;Bus interface (UART, I2C, SPI, CAN);
• Provide automatic and manual mode;
• Color LED lamp;
• Multi tone buzzer interface;
• Micro SD to record flight data;

Package included:

• 1 x 2.4.8 Pixhawk main control
• 1 x Safety switch
• 1 x Flight control shell
• 1 x Buzzer
• 1 x 6pin to 6pin line
• 1 x 4Pin to  4Pin line
• 1 x 3pin DuPont line
