MAVLink-OSD On-Screen Display MinimOSD for Pixhawk/ APM

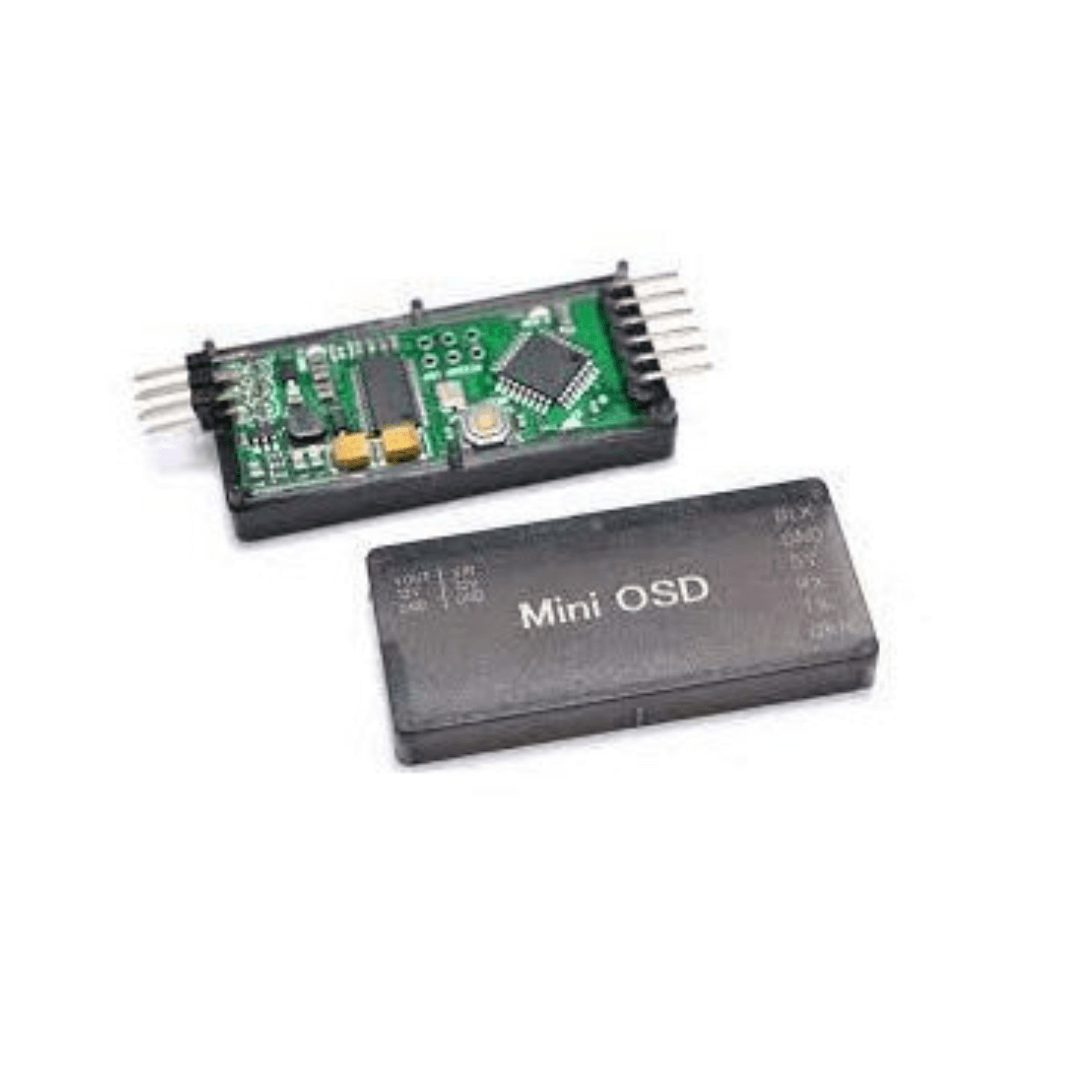

MinimOSD, a minimal Arduino-based on-screen display board. It's tailored for use with ArduPilot Mega and the MAVlink protocol, and designed to be as compact as possible.
It's main components are an ATmega328P 8 bit microcontroller with an Arduino bootloader, and a MAX7456 monochrome on-screen display. Programming is done through an FT232 Module
It features two independent power and ground sections to isolate the OSD's analog stage: a +5V section for the ATmega and the OSD's digital stage, powered through the FTDI cable or other +5V source; and a regulated +5V section for the OSD's analog stage, powered through the video in / out header and capable of handling up to +12V input. Solder jumpers are available to combine the two power and ground sections if desired.

Main Features:

• ATmega328P with Arduino bootloader
• MAX7456 monochrome on-screen display
• FTDI cable compatible pinout
• Standard 6-pin ISP header
• Two independent power sections with an LED indicator on each
• Solder jumpers for combining the power sections
• +5V 500mA regulator for up to +12V supply input
• Solder jumper for PAL video option
• Exposed test points for HSYNC and LOS

Specifications

• Package Weight: 0.04 kg

• Package Size: 9.0 × 5.0 × 2.0 cm (3.5 × 2.0 × 0.8 in)

Package Contents

• 1 × MAVLink-OSD APM Telemetry

• 1 × Cable
